PET Preform mould mater, offer various preform types, like PCO1810, ISBT1881, 3025, 2925, 38mm….

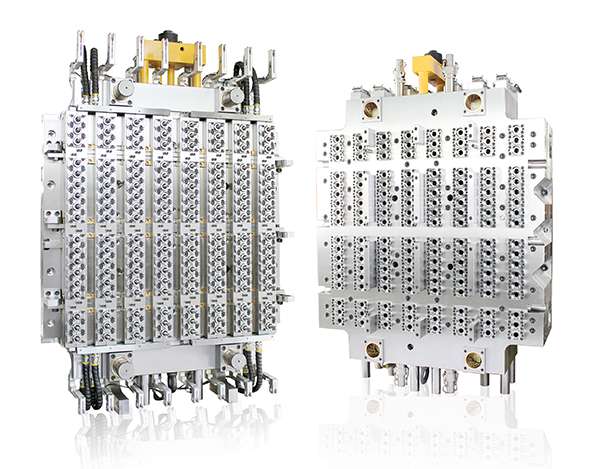

PET Preform mould ranging from 2 to 144 cavities
Core, cavity and neck can be interchanged
Excellent PET Preform mould design, hot runner, pin-valve gated type Without tai
Core
Hardness：50°- 52°
Material： S136.
Titanize in core surface to improve the hardness , prefrom quality and the core using life
Cavity
Hardness：47°- 48°
Material： S136.
Special cooling design to improve the cool water effect and guarantee the preform quality
Screw(neck)
Hardness：45°- 46
Material： S136.
Special cooling and locating tab improves preform quality and the using life of screw
Nozzle
Hardness：38°- 40°
Material： Beryllium Bronze
Preform Fall Spare Part
Hardness：30°- 32
Material：Stainless Steel
Nickel plating in surface to prevent rust
Valve Needle
Hardness：59°- 61°
Material： SKH51
High strength，corrosion resisting，and has ability to work under high level of pressure .It fits for precison process
Graphite Copper
Hardness：30°-32
Mould plate material is P20，The graphite copper is to increase the lubrication effection
Sealing Ring
special structure and design prevent seepage well
Nozzle Holder
Hardness：50°
Material： SKD61
This is new-style nozzle holder. It adopts precision instrument to guarantee good heat transfer
Heating Ring
Voltage： 240V
Power： 268W
It is new-style made in Germany ，adopt advanced technology to prevent the heat loss and the energy consumption in production reduce by half
Thermo Couple
Germany standard
Heat Insulation Cover
American Dupont plastic
Customer Solutions
Preform Mold
0:16
0:16
0:16
PET Preform Mold
-
72-cavity PET preform mould
preform mold -
48-cavity PET preform mould
preform mold -
32-cavity PET preform mould
preform mold -
24-cavity PET preform mould
preform mold
