JTZ-140HS
We can supply the following products:
1.Computerized injection moulding machine for different plastic material;
1)Various PP, PE, PS injection moulding machine from 50g to 12500g
2)High capacity PET preform special injection moulding machine from 427g to 4700g
3)High speed plastic cap injection moulding machine
4)PVC fitting special injection moulding machine
5)Wood plastic special injection moulding machine
6)Variable pump energy saving injection machine
2.Various kinds of injection machine accessories such as Hopper dryer, Auto loader, Dehumidifier, Water chiller, Plastic crusher, etc.

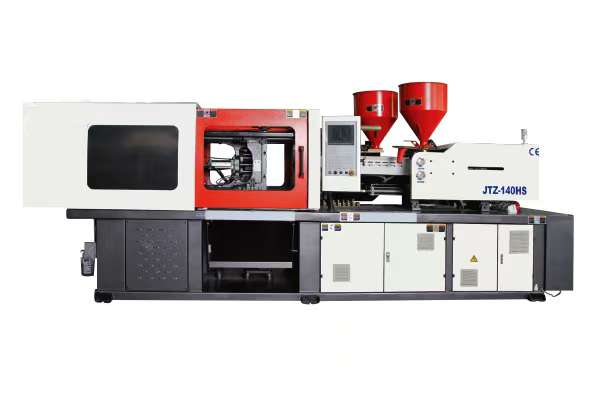

JTZ-140HS description
- Mixed two-color injection molding machine is the latest research and development of our company to produce mixed two-color product injection molding machine, can be used to produce two-color toothbrush, comb, shoe upper belt and other daily two-color products.
- The machine adopts double servo energy-saving system, the main and auxiliary screw can realize alternately or simultaneously injection function;
- Equipped with dual color machine control computer, for different products to provide a variety of injection functions.
| SPECIFICATION | UNIT | JTZ-140HS | |
|---|---|---|---|
| INJECTION UNIT | I | II | |
| Screw diameter | mm | 42 | 35 |
| Shot volume(theoretical) | cm³ | 227 | 163 |
| Injection weight(ps) | g | 252 | 148 |
| Injection rate | g/s | 115 | 89 |
| Injection pressure | MPa | 171 | 219 |
| Screw speed | rpm | 0~221 | |
| CLAMPING UNIT | |||
| Clamping force | KN | 1400 | |
| Moving Mould-plate stroke | mm | 380 | |
| Space between tie bars(WxH) | mm | 420 x 420 | |
| Max.Mould height | mm | 450 | |
| Min.Mould height | mm | 160 | |
| Hydraulic Ejector stroke | mm | 120 | |
| Hydraulic Ejector force | kN | 50 | |
| OTHERS | |||
| Max.Pump pressure | MPa | 16 | |
| Pump motor power | kW | 15+15 | |
| Heating power | kW | 17 | |
| Machine dimension(LxWxH) | m | 4.62 x 1.83 x 1.90 | |
| Oiltank cubage | L | 270 | |
| Machine weight | t | 4.5 | |
