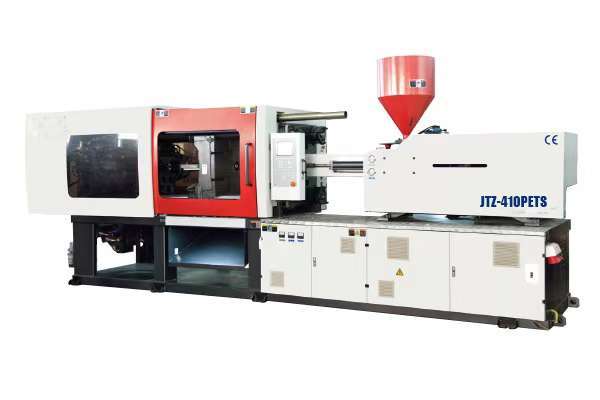

JTZ-410PETS
JTZ standard PET injection moulding machine is modified on the basis of regular machine to be suitable for product different kinds of preform.
- Adopt special design for PET material, long L/D to increase the efficiency of charging and shot weight.
- Increased ejector force and stroke to improve the ejecting speed.
- Servo energy saving system could be chosen for machine, electricity consumption will be reduced 30% to 50%.
- We can provide full set equipment for PET bottle such as injection machine, blow moulding machine, mould and other accessories.
JTZ-410PETS description
- Adopt special design for PET material, long L/D to increase the efficiency of charging and shot weight.
- Increased ejector force and stroke to improve the ejecting speed.
- Servo energy saving system could be chosen for machine, electricity consumption will be reduced 30% to 50%.
- We can provide full set equipment for PET bottle such as injection machine, blow moulding machine, mould and other accessories.
| Injection unit | JTZ410PETS | |
|---|---|---|
| Screw diameter | Mm | 90 |
| Theoretical shot volume | Cm3 | 2607 |
| Injection weight | g | 2868 |
| Injection rate | g/s | 775 |
| Injection pressure | Mpa | 120 |
| Screw rotation speed | Rpm | 0～106 |
| Clamping unit | ||
| Clamping force | KN | 4100 |
| Open stroke | Mm | 705 |
| Max. Mould height | Mm | 820 |
| Min. mould height | Mm | 250 |
| Space between die bar(W×H) | Mm | 720×720 |
| Ejector force | KN | 150 |
| Ejector stroke | Mm | 180 |
| Others | ||
| Max. pump pressure | Mpa | 16 |
| Pump motor Power | KW | 64.6 |
| Heating power | KW | 43.9 |
| Oil tank cubage | L | 700 |
| Machine dimension (L×W×H) | M | 8.4X1.90X2.4 |
| Machine weight | T | 17 |
