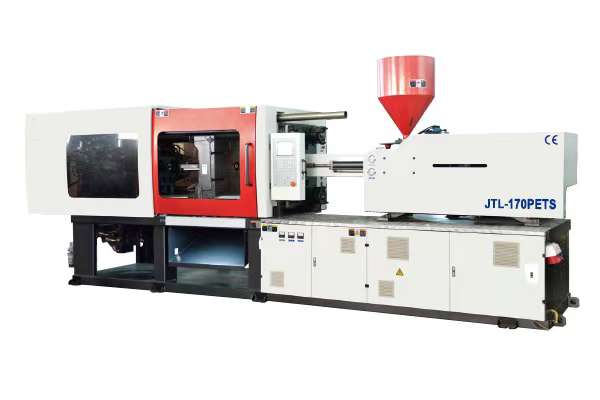

JTL-170PETS

We can supply the following products:
1.Computerized injection moulding machine for different plastic material;
1)Various PP, PE, PS injection moulding machine from 50g to 12500g
2)High capacity PET preform special injection moulding machine from 427g to 4700g
3)High speed plastic cap injection moulding machine
4)PVC fitting special injection moulding machine
5)Wood plastic special injection moulding machine
6)Variable pump energy saving injection machine
2.Various kinds of injection machine accessories such as Hopper dryer, Auto loader, Dehumidifier, Water chiller, Plastic crusher, etc.

JTL-170PETS description

  • Small clamping unit with large shot weight, suitable for different.
  • Equip with low speed and high torque hydraulic motor which is good for charging material stably and fast.
  • Big diameter screw and barrel, special design for PET material.
  • Increased ejector force and stroke to improve the ejecting speed.
  • Equip with special cooling water distributor and compressed air valve for easy operation.
  • Max mould height is big for different type preform mould.
  • Platen hole could be drilled specially according to preform mould, cancel clamp plate for fixing mould.
  • Equipped with socket for preform conveyor.
Injection unitJTL170PETS
Screw diameterMm65
Screw L/D ratioL/D25
Theoretical shot volumeCm3895
Injection weightg961
oz33.9
Injection rateg/s384
Injection pressureMpa130
Screw rotation speedRpm134
Clamping unit
Clamping forceKN1700
Open strokeMm435
Max. Mould heightMm560
Min. mould heightMm180
Space between die bar(W×H)Mm470×470
Ejector forceKN70
Ejector strokeMm140
Ejector numbern5
Others
Max. pump pressureMpa16
Pump motor PowerKW36.7
Heating powerKW22.3
Machine dimension (L×W×H) M6X1.43X1.82
Machine weightT6
Injection Molding Machine
Injection Molding Machine Features
