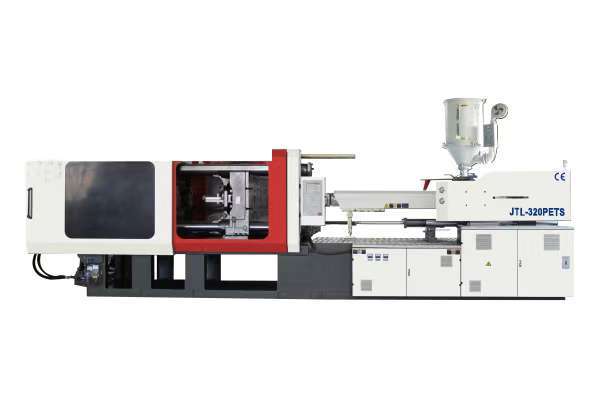

JTL-320PETS
We can supply the following products:
1.Computerized injection moulding machine for different plastic material;
1)Various PP, PE, PS injection moulding machine from 50g to 12500g
2)High capacity PET preform special injection moulding machine from 427g to 4700g
3)High speed plastic cap injection moulding machine
4)PVC fitting special injection moulding machine
5)Wood plastic special injection moulding machine
6)Variable pump energy saving injection machine
2.Various kinds of injection machine accessories such as Hopper dryer, Auto loader, Dehumidifier, Water chiller, Plastic crusher, etc.
JTL-320PETS description
- Small clamping unit with large shot weight, suitable for different.
- Equip with low speed and high torque hydraulic motor which is good for charging material stably and fast.
- Big diameter screw and barrel, special design for PET material.
- Increased ejector force and stroke to improve the ejecting speed.
- Equip with special cooling water distributor and compressed air valve for easy operation.
- Max mould height is big for different type preform mould.
- Platen hole could be drilled specially according to preform mould, cancel clamp plate for fixing mould.
- Equipped with socket for preform conveyor.
| Injection unit | JTL320PETS | |
|---|---|---|
| Screw diameter | Mm | 80 |
| Screw L/D ratio | L/D | 25 |
| Theoretical shot volume | Cm3 | 1959 |
| Injection weight | g | 2115 |
| oz | 427.34 | |
| Injection rate | g/s | 528 |
| Injection pressure | Mpa | 165 |
| Screw rotation speed | Rpm | 139 |
| Clamping unit | ||
| Clamping force | KN | 3200 |
| Open stroke | Mm | 660 |
| Max. Mould height | Mm | 720 |
| Min. mould height | Mm | 250 |
| Space between die bar(W×H) | Mm | 680×680 |
| Ejector force | KN | 150 |
| Ejector stroke | Mm | 165 |
| Ejector number | n | 13 |
| Others | ||
| Max. pump pressure | Mpa | 16 |
| Pump motor Power | KW | 60 |
| Heating power | KW | 36.7 |
| Machine dimension (L×W×H) | M | 7.6X1.88X2.07 |
| Machine weight | T | 14 |
