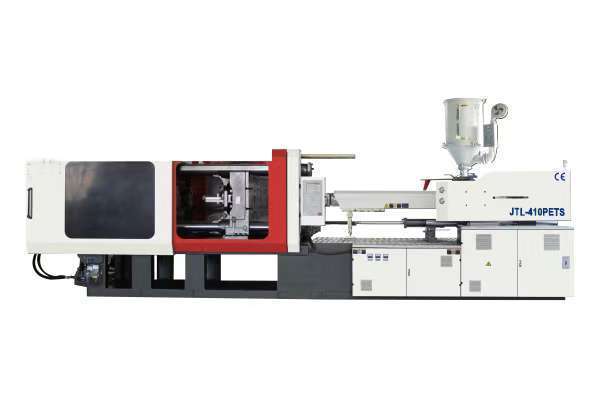

JTL-410PETS

We can supply the following products:
1.Computerized injection moulding machine for different plastic material;
1)Various PP, PE, PS injection moulding machine from 50g to 12500g
2)High capacity PET preform special injection moulding machine from 427g to 4700g
3)High speed plastic cap injection moulding machine
4)PVC fitting special injection moulding machine
5)Wood plastic special injection moulding machine
6)Variable pump energy saving injection machine
2.Various kinds of injection machine accessories such as Hopper dryer, Auto loader, Dehumidifier, Water chiller, Plastic crusher, etc.

JTL-410PETS description

  • Small clamping unit with large shot weight, suitable for different.
  • Equip with low speed and high torque hydraulic motor which is good for charging material stably and fast.
  • Big diameter screw and barrel, special design for PET material.
  • Increased ejector force and stroke to improve the ejecting speed.
  • Equip with special cooling water distributor and compressed air valve for easy operation.
  • Max mould height is big for different type preform mould.
  • Platen hole could be drilled specially according to preform mould, cancel clamp plate for fixing mould.
  • Equipped with socket for preform conveyor.
Injection unitJTL410PETS
Screw diameterMm90
Screw L/D ratioL/D25
Theoretical shot volumeCm32480
Injection weightg2678
oz94.46
Injection rateg/s661
Injection pressureMpa138
Screw rotation speedRpm130
Clamping unit
Clamping forceKN4100
Open strokeMm705
Max. Mould heightMm780
Min. mould heightMm250
Space between die bar(W×H)Mm720×720
Ejector forceKN150
Ejector strokeMm180
Ejector numbern13
Others
Max. pump pressureMpa16
Pump motor PowerKW40.5+28.3
Heating powerKW42.7
Machine dimension (L×W×H) M8.2X1.95X2.14
Machine weightT16
Injection Molding Machine
Injection Molding Machine Features
